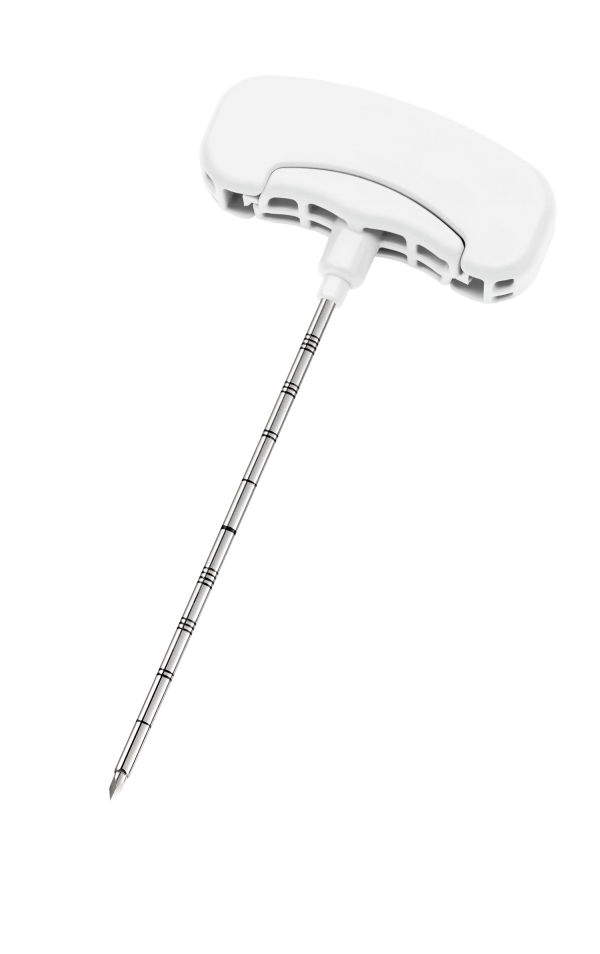

BONE ACCESS NEEDLE™
Needle designed for minimally invasive bone access during spinal surgeries
BONE ACCESS NEEDLE™ features make them ideal for every kind of bone access.
- Ergonomic, radio-transparent and hammerable handle;
- Standard Luer-lock connection;
- Ultra-sharpened cannula with crown tip;
- Depth markings on the cannula;
- Trocar tip stylet;
- No glued parts.
The BONE ACCESS NEEDLE™ is intended to be used to create bone access in mini-invasive bone surgery.
In particular, the needle can be used to create bone access when inserting screw systems for reduction of spine fractures or in case of spine stabilization in the presence of particular pathological conditions, such as tumours, infections, post-traumatic deformations, degenerative discopathy, osteoporosis, etc.
Surgical technique:
- For pedicle screw insertion, use X-ray imaging to locate the pedicles, make a ~25 mm skin incision and dissect down to the pedicle.
- Insert the needle through the incision, align it with the pedicle trajectory, and penetrate the pedicle cortex under fluoroscopic guidance.
- Once the target position is confirmed, remove the stylet. If using a guidewire (or Kirschner wire) for pedicle screw insertion, insert it through the needle cannula and guide it through the pedicle.
- Once the bone access procedure has been completed, reinsert the stylet into the cannula and remove the entire cannula-stylet system.
| GAUGE | DIAMETER (mm) | LENGTH | CODES |
| 8G | 4,00 | 100 mm | BAN0810CDT |
| 120 mm | BAN0812CDT | ||
| 150 mm | BAN0815CDT | ||
| 11G | 3,00 | 100 mm | BAN1110CDT |
| 120 mm | BAN1112CDT | ||
| 150 mm | BAN1115CDT | ||
| 13G | 2,50 | 100 mm | BAN1310CDT |
| 120 mm | BAN1312CDT | ||
| 150 mm | BAN1315CDT |
