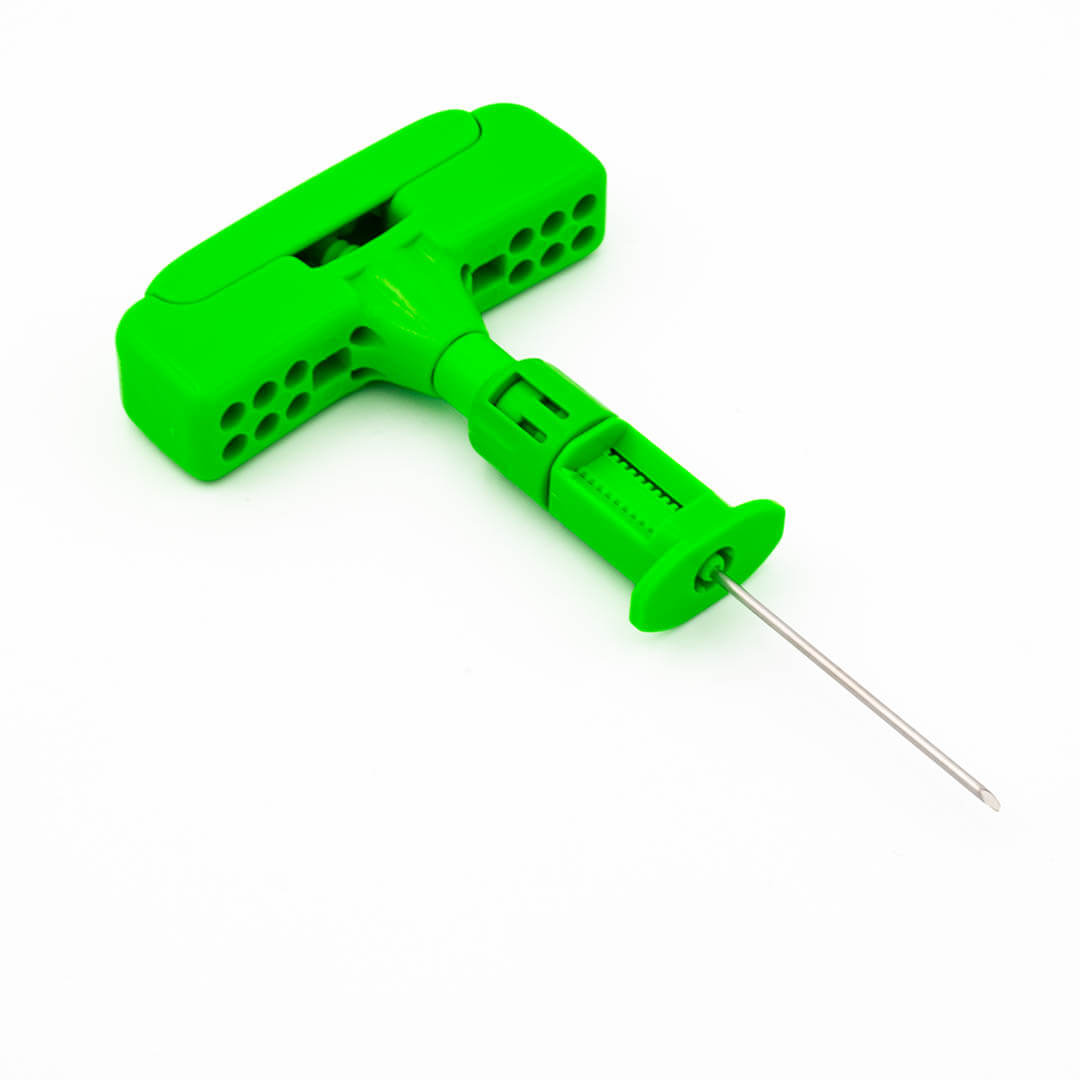

Bone marrow aspiration needle with T handle

The ILIAC MARROW™ needle is a single-use device for bone marrow aspiration from the iliac crest.

The ergonomic handle, with Luer-lock connector, and the perfectly sealed connection between the stylet and the cannula enable quick and effective bone marrow aspiration.
The advancement system enables precise adjustment of the needle length.
Due to the innovative removable advancement system, the total length of the needle can be used.

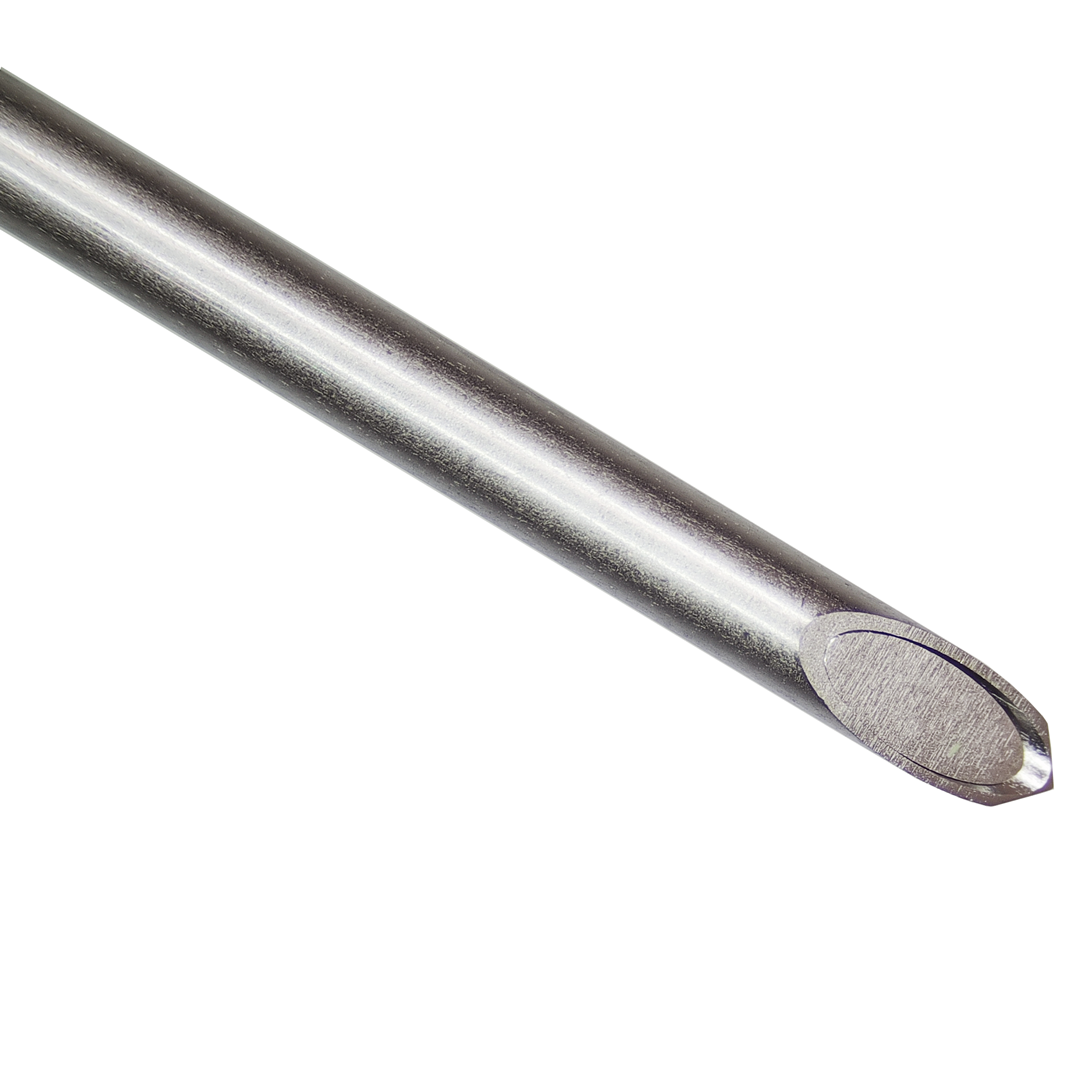

The triple sharpened cannula enables an easy and less traumatic penetration.

Surgical technique:

Insert the adjustable spacer into the handle. Adjust cannula protrusion by turning the ring nut.
Insert the cannula + stylet system perpendicular to the bone surface and advance by rotating until the medullary cavity is reached.
When the desired depth has been reached, remove the stylet.
Insert a syringe into the Luer-lock cone and aspirate the bone marrow tissue.
Disconnect the syringe with the aspirate and reinsert the stylet.
Remove the cannula + stylet system with rotary movements.

GAUGE	DIAMETER (mm)	PRODUCT CODE	NEEDLE SIZE	MINIMAL LENGTH (mm)	MAXIMAL LENGTH (mm)	MAXIMUM LENGTH WITHOUT GEAR (mm)	PIECES PER BOX
15G	1,80	IM1507	15G x 7cm	9	25	32	10
