GAMMA™

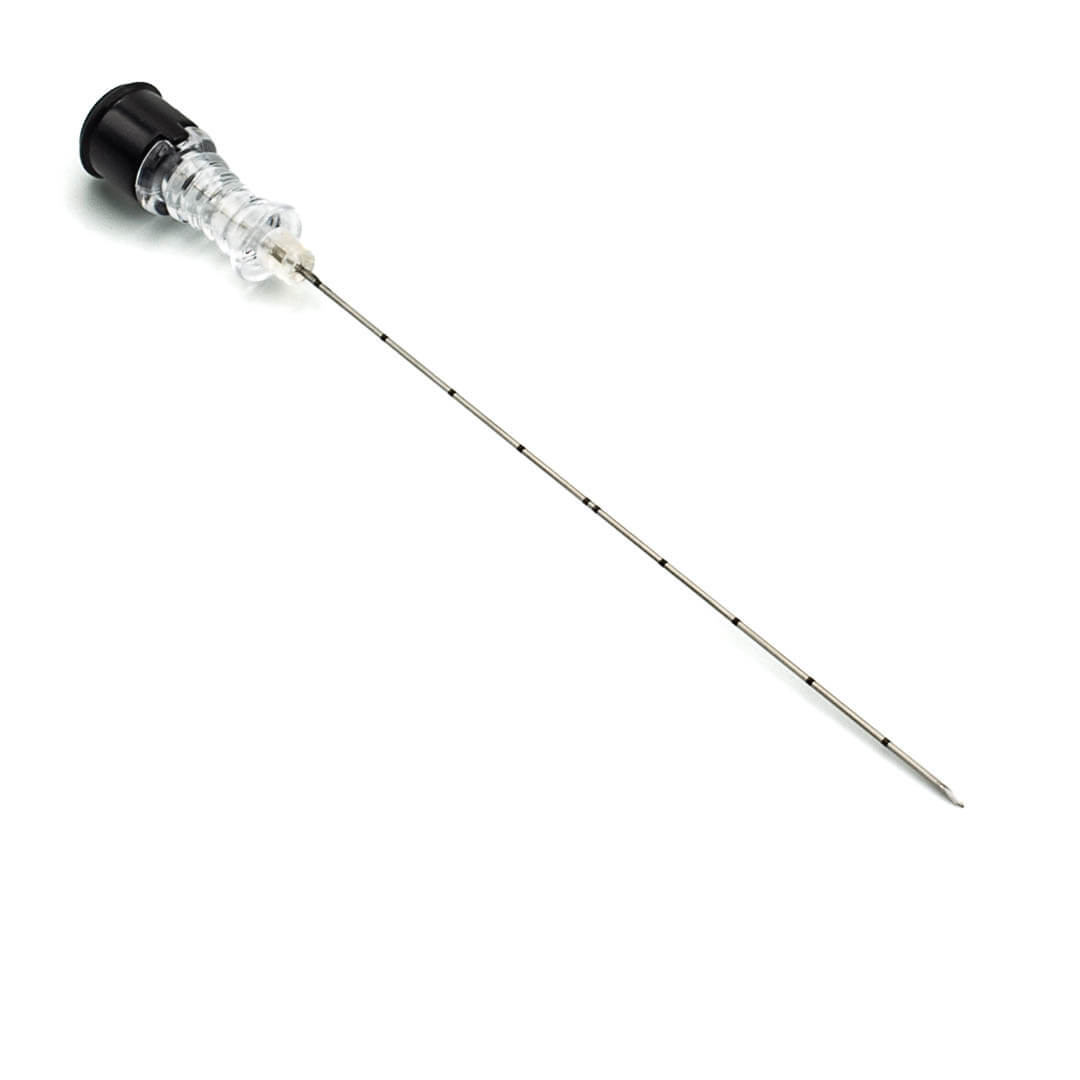

Aspiration needle for soft tissue biopsy and prenatal diagnosis

GAMMA™ needle can be used for various types of biopsies and prenatal diagnosis: cytological aspiration, amniocentesis, chorionic villus sampling, cystocentesis, and needle aspirations.

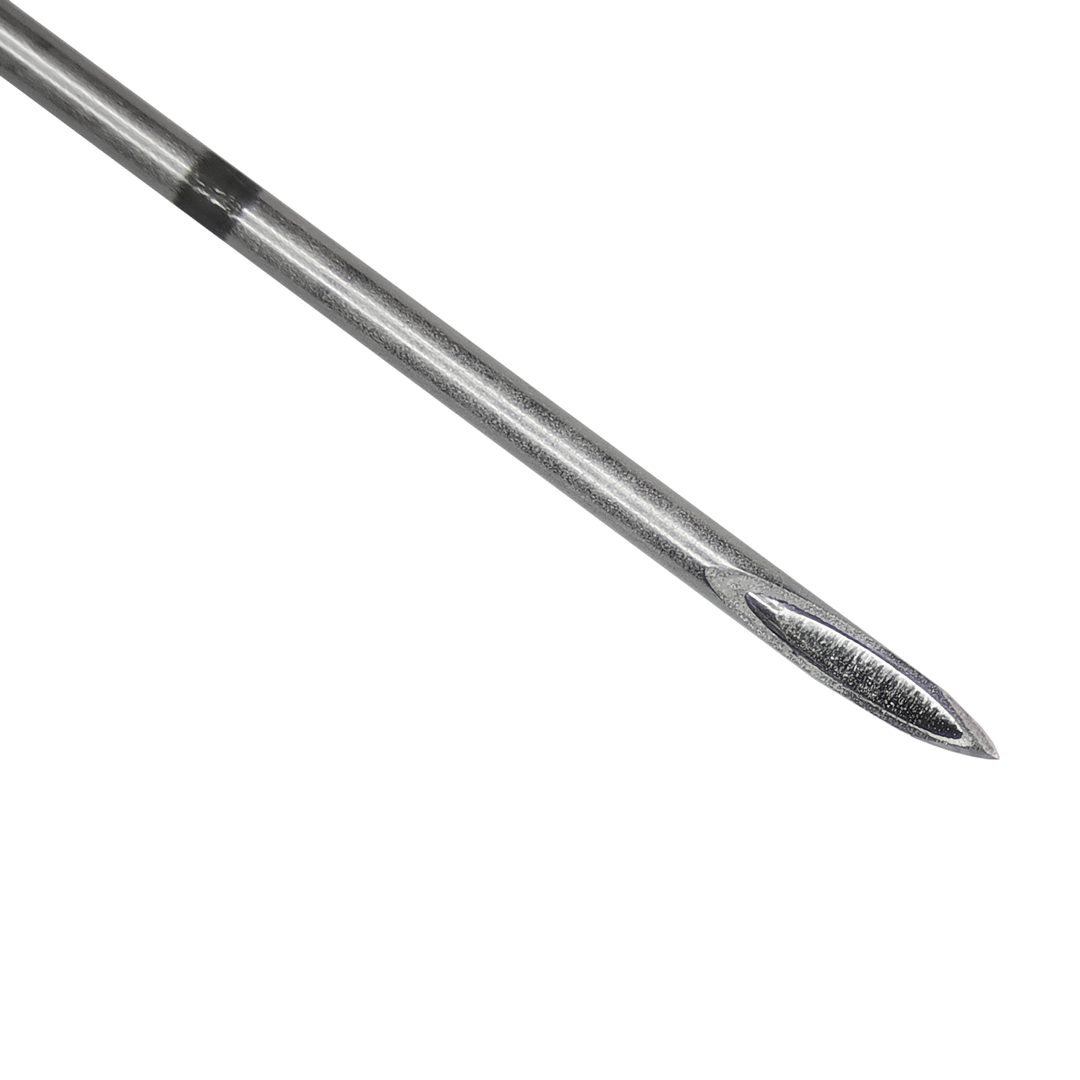

The particular sharpening of the modified Chiba-tip improves penetration, making it less invasive and traumatic.
The centimetre depth marker, sliding stopper and internal echo marker, make it easier and more accurate to control the depth reached.
Equipped with a Luer-lock universal connection.
The passage of liquids can be seen through the transparent plastic handle.
M.E.A. tested for safety and biocompatibility.

Aspiration needles are used for soft tissue biopsies to obtain cytological samples for diagnostic evaluation. In prenatal diagnosis, they enable the safe collection of fetal cells for genetic and chromosomal analysis.

Surgical technique:

Insert the needle at the selected site for biopsy, prenatal diagnosis, or infusion.
In the case of an oblique introduction, rotate the latch of the stylet upward to improve the angle.
During penetration, hold the coloured-coded cap attached to the transparent handle.
Use the sliding stopper and centimetre markings to reach the aspiration point, assisted by the internal echogenic marker for ultrasound monitoring.
Once the point is reached, remove the stylet, connect a syringe, and proceed with the aspiration or infusion of the fluid.

GAUGE	DIAMETER (mm)	PRODUCT CODE	NEEDLE SIZE	PIECES PER BOX
18G	1,27	GM1810EC	18G x 10cm	20
		GM1815EC	18G x 15cm
		GM1820EC	18G x 20cm
20G	0,90	GM2009EC	20G x 9cm	20
		GM2010EC	20G x 10cm
		GM2012EC	20G x 12cm
		GM2015EC	20G x 15cm
		GM2020EC	20G x 20cm
21G	0,80	GM2109EC	21G x 9cm	20
		GM2110EC	21G x 10cm
		GM2115EC	21G x 15cm
		GM2120EC	21G x 20cm
22G	0,70	GM2209EC	22G x 9cm	20
		GM2210EC	22G x 10cm
		GM2212EC	22G x 12cm
		GM2215EC	22G x 15cm
		GM2220EC	22G x 20cm
25G	0,50	GM2507EC	25G x 7cm	20
		GM2509EC	25G x 9cm
		GM2510EC	25G x 10cm
