SET VILLOCENTESI™ Chorionic villi sampling set for prenatal diagnosis, designed with coaxial needles for safe and precise sample collection from pregnant women

CHIBELL VILLOCENTESI™ - GAMMA VILLOCENTESI™

Chorionic villi sampling kit

The kits CHIBELL VILLOCENTESI™ and GAMMA VILLOCENTESI™ have been designed for taking chorionic villi samples and amniotic fluid from pregnant women for prenatal diagnosis.
  • Diagnosi prenatale

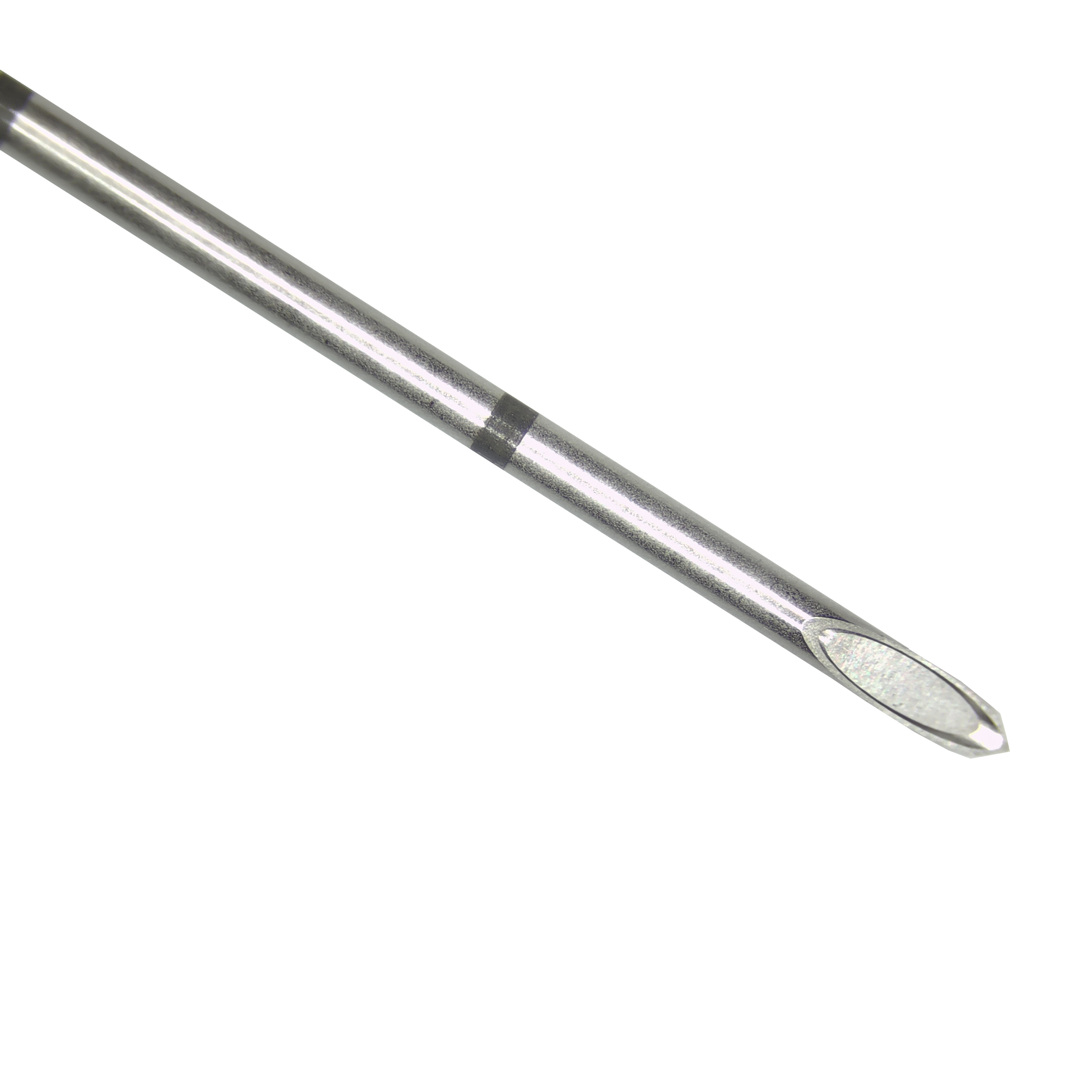

  • The set is available in two different versions: Chiba tip (CHIBELL VILLOCENTESI™) or modified Chiba tip (GAMMA VILLOCENTESI™).

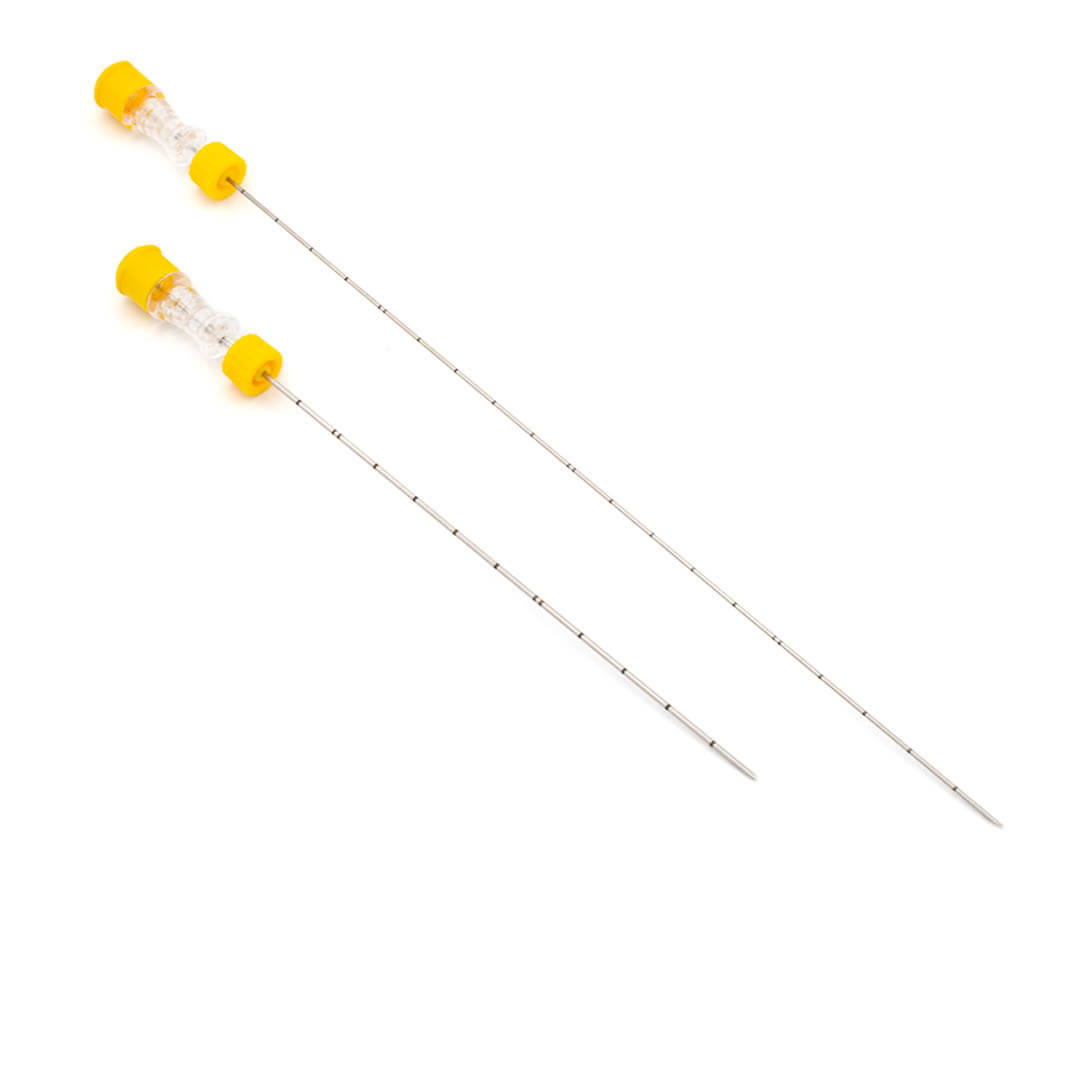

  • Each kit is composed of two coaxial needles with a 3 cm or 5 cm length difference. The shorter needle is used as an introducer for the second needle, which is used to collect the sample.
  • The sliding stopper and inner echogenic marker allow monitoring of the depth reached.
  • The needle is equipped with a universal Luer-Lock connector and a transparent plastic grip through which the passage of liquids can be verified.
  • MEA/LAL tested for safety and biocompatibility.

Chorionic villus sampling (CVS) is a prenatal diagnostic procedure that allows for the early detection of genetic conditions in a fetus. CHIBELL VILLOCENTESI™ and GAMMA VILLOCENTESI™ are specifically designed to facilitate this procedure by safely collecting chorionic villi or amniotic fluid. Each kit consists of two coaxial needles: a shorter one that serves as an introducer and a longer one for sample collection.

Under ultrasound guidance, the doctor inserts the introducer needle into the placenta or amniotic sac, ensuring precise positioning. The second needle is then advanced through the introducer to obtain the sample.

Features such as a sliding stopper and echogenic marker help monitor insertion depth, while the transparent grip allows real-time visualisation of fluid passage. The Luer-Lock connector ensures secure handling during collection.

This minimally invasive technique provides essential information about the baby’s genetic health, aiding in early medical decisions.

GAUGE DIAMETER (mm) PRODUCT CODE 15 cm PRODUCT CODE 20 cm PIECES PER BOX
18G 1,55 CHVL181503EC CHVL182003EC 20
19G 1,35 CHVL191503EC CHVL192003EC 20
20G 1,15 CHVL201503EC CHVL202003EC 20
21G 1,10 CHVL211503EC CHVL212003EC 20
22G 0,95 CHVL221503EC CHVL222003EC 20

CHIBELL VILLOCENTESI™ with Chiba needle

GAUGE DIAMETER (mm) PRODUCT CODE 15 cm PRODUCT CODE 20 cm PIECES PER BOX
18G 1,55 GMVL181503EC GMVL182003EC 20
19G 1,35 GMVL191503EC GMVL192003EC 20
20G 1,15 GMVL201503EC GMVL202003EC 20

GAMMA VILLOCENTESI™ with modified Chiba needle
